G Scale LGB 2070D U43 0-6-2 Gray Tank Loco w Lights, Smoker, Working Cab & Boiler Doors
BRAND NEW - From an authorized LGB dealer
Made in Germany - Rare and out of production
The loco is powered by a powerful 7 Pole Bühler motor and 6 wheel drive 8 point power pickup
![G Scale LGB 2070D U43 0-6-2 Gray Tank Loco w Lights, Smoker, Working Cab & Boiler Doors](image/LGB-2070D_U43_-0-6-2_Gray-Tank-Loco_New/LGB-2070D_U43_-0-6-2_Gray-Tank-Loco_New_rt-ft-hi_animate-FB-Door-lights_1024.gif)

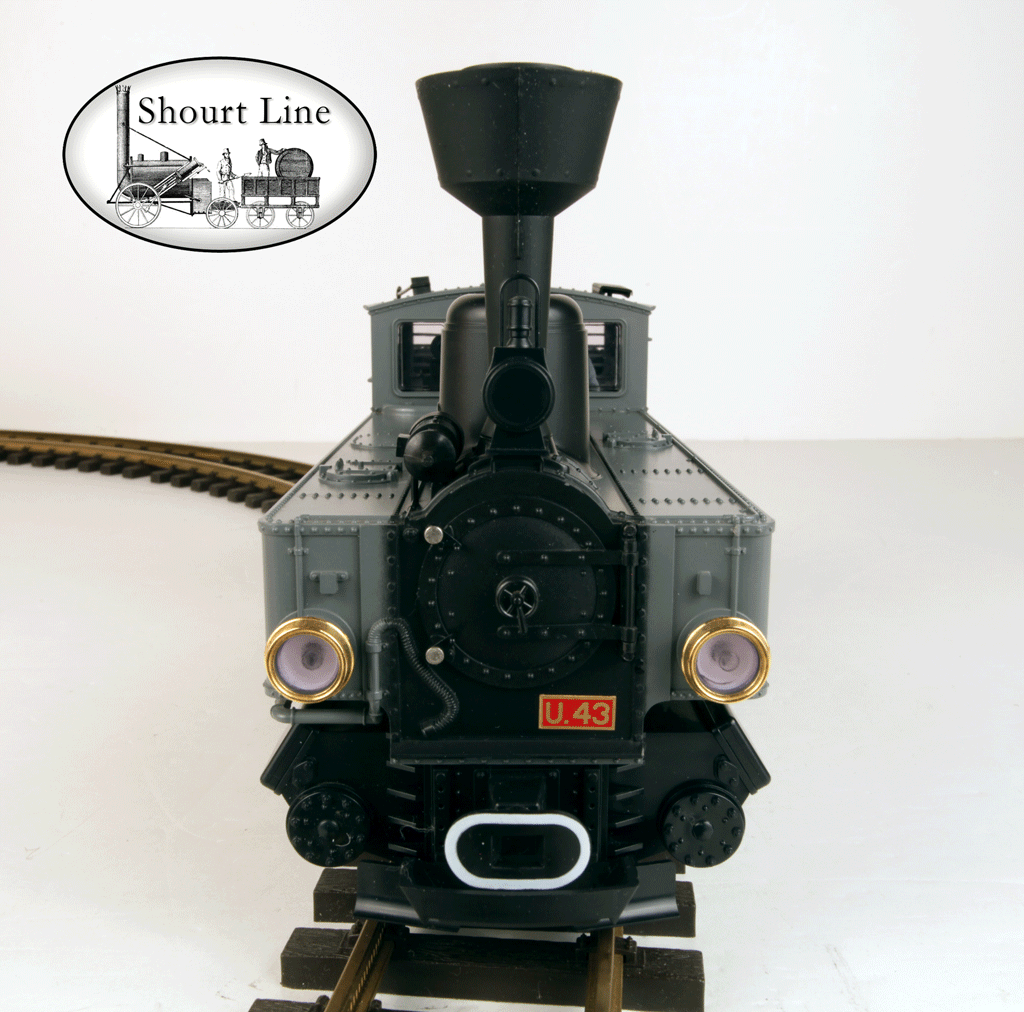

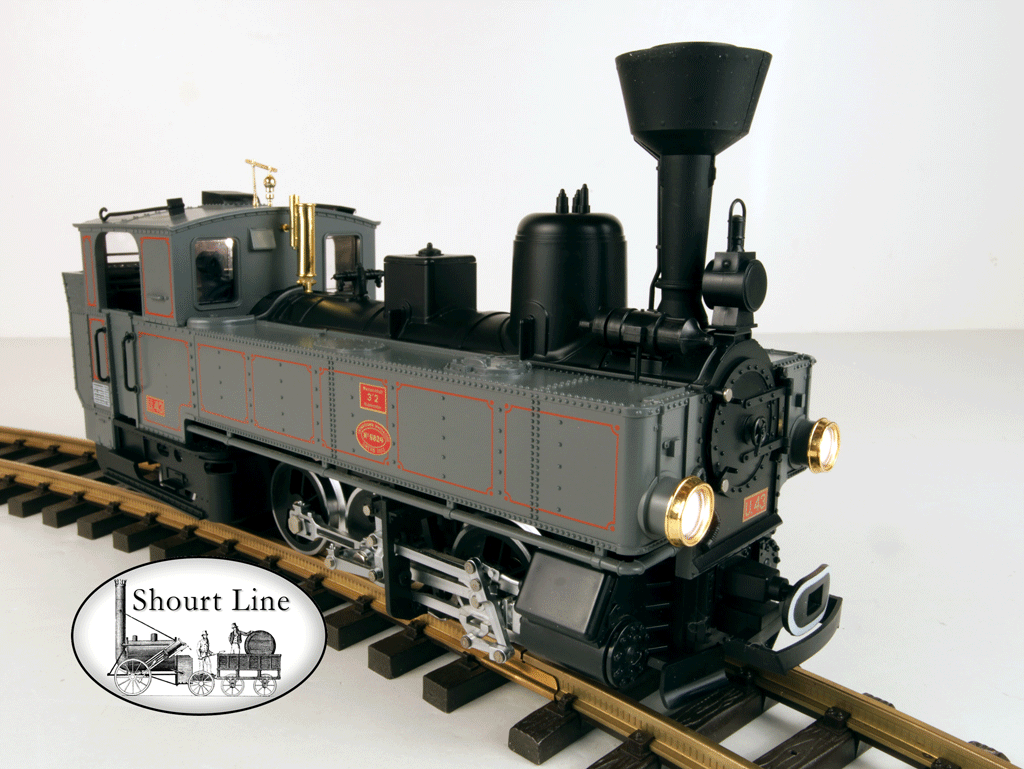

Note loco's snow plows located over each rail and the working front boiler door.
Shourt Line Direct Discount Price: $349.95 New - Out of production and no longer available
Questions? Contact us at 310-622-4431 or email info@ShourtLine.com
![G Scale LGB 2070D U43 0-6-2 Gray Tank Loco w Lights, Smoker, Working Cab & Boiler Doors](image/LGB-2070D_U43_-0-6-2_Gray-Tank-Loco_New/LGB-2070D_U43_-0-6-2_Gray-Tank-Loco_New_in-foam-box-top-off_1280.jpg)
In original package with factory foam carrier and foam block to secure the loco in transport.
Features: BRAND NEW
Ready to run
The Prototype:
U43 Series of the Steiermarkischen Landesbahnen. With Balwin-type smoke stack and side tank constuction.
The Model:
Features:
- New - Made in Germany - 19887
- Weather-resistant construction
- Directional head lights front and rear
- Smoke generator
- 6 powered wheels - one with traction tire
- 8 power pickups
- Rear power jacks for lighting cars behind the loco
- D type motor block with removeable bottom plate
- Buhler German made motor for extreme pulling power
- 3 way switch for parking loco with only lights and smoker on, all on and all off
- Locomotive Length:
250mm
- Weight:
1700 grams
Includes:
- LGB 2070D Locomotive NEW
- New in the box with factory packing
- Compatible with all G Scale track
- LGB hook and loop couplers on the front and loop coupler on front
- Factory mounted engineer
The model is delivered ready to
run.
Lighting:
The model has front and rear
lamps that change illumination depending
on the direction of travel.
The interior lighting set can be
fitted to the lighting socket at the
rear of the cab.
Steam Generator:
To turn on the steam generator use the three way switch in mid or right position. Then
some smoke fluid (from either
the included capsule or LGB
No. 5000) should be placed into
the funnel. The funnel should only
be filled halfway, otherwise the
steam generator cannot develop
the heat needed to evaporate the
steam fluid. The amount of steam
generated depends on the engine
speed. Operating the locomotive
without steam fluid does not hurt
the steam generator.
Drive Mechanism:
This model is powered by a
seven-pole Buhler motor. 3 axles
are powered. One wheel is
equipped with a traction tire.
Service Manual:
Click here to view the LGB Service Manual
Photos:
![G Scale LGB 2070D U43 0-6-2 Gray Tank Loco w Lights, Smoker, Working Cab & Boiler Doors](image/LGB-2070D_U43_-0-6-2_Gray-Tank-Loco_New/LGB-2070D_U43_-0-6-2_Gray-Tank-Loco_New_box-end_800.jpg)
New in the box
![](image/LGB-2070D_U43_-0-6-2_Gray-Tank-Loco_New/LGB-2070D_U43_-0-6-2_Gray-Tank-Loco_New_rr-hi-rr_animate-lights_1024.gif)
Cab Lighting is provided and both cab door can be opened, The engineer is factory mounted in the cab.

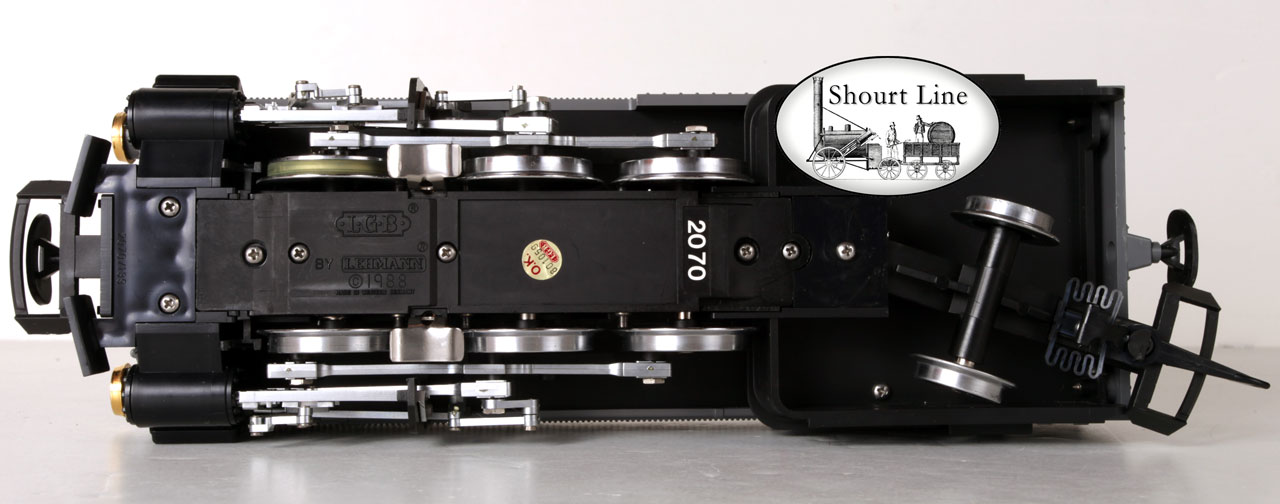

![G Scale LGB 2070D U43 0-6-2 Gray Tank Loco w Lights, Smoker, Working Cab & Boiler Doors](image/LGB-2070D_U43_-0-6-2_Gray-Tank-Loco_New/LGB-2070D_U43_-0-6-2_Gray-Tank-Loco_New_bottom-1988_1280.jpg)
New - never run.
![G Scale LGB 2070D U43 0-6-2 Gray Tank Loco w Lights, Smoker, Working Cab & Boiler Doors](image/LGB-2070D_U43_-0-6-2_Gray-Tank-Loco_New/LGB-2070D_U43_-0-6-2_Gray-Tank-Loco_New_hi-rr-rt_animate-lights_1024.gif)
![G Scale LGB 2070D U43 0-6-2 Gray Tank Loco w Lights, Smoker, Working Cab & Boiler Doors](image/LGB-2070D_U43_-0-6-2_Gray-Tank-Loco_New/LGB-2070D_U43_-0-6-2_Gray-Tank-Loco_New_lf-rr-low_animate-lights_1024.gif)
![G Scale LGB 2070D U43 0-6-2 Gray Tank Loco w Lights, Smoker, Working Cab & Boiler Doors](image/LGB-2070D_U43_-0-6-2_Gray-Tank-Loco_New/LGB-2070D_U43_-0-6-2_Gray-Tank-Loco_New_ft-lf-low-on-tk-Lts-ON_1024.jpg)
![G Scale LGB 2070D U43 0-6-2 Gray Tank Loco w Lights, Smoker, Working Cab & Boiler Doors](image/LGB-2070D_U43_-0-6-2_Gray-Tank-Loco_New/LGB-2070D_U43_-0-6-2_Gray-Tank-Loco_New_front_animate-FB-Door-lights_1024.gif)
![G Scale LGB 2070D U43 0-6-2 Gray Tank Loco w Lights, Smoker, Working Cab & Boiler Doors](image/LGB-2070D_U43_-0-6-2_Gray-Tank-Loco_New/LGB-2070D_U43_-0-6-2_Gray-Tank-Loco_New_rt-ft-hi_animate-FB-Door-lights_1024.gif)
Don't miss the loco about to leave the station!
